From EEC-IV to Bosch: three generations of Ford engine management

Few makes reach a UK repair bench in the sheer numbers a Ford does. The Fiesta, Focus, Mondeo, Ka and Transit have sat near the top of Britain’s registration figures for a very long stretch, so the engine ECUs that manage them turn up here more often than almost any other badge — and they arrive across three distinct eras of Ford control-unit design. The earliest are the Visteon EEC-IV petrol units, followed by the longer-serving Visteon EEC-V family that ran the mainstream petrol range for years. Later petrol cars moved to Bosch Motronic ME management, while the TDCi common-rail diesels are handled by Bosch EDC controllers.

That spread is worth understanding before you send anything in, because a Ford engine ECU is not one thing — the fault patterns, the internal layout and the way each unit is best repaired differ between a mid-1990s EEC-V board and a Bosch EDC16 off a TDCi. This page sets out which Ford engine ECUs we hold and repair, the faults that bring each generation in, how to tell a genuine ECU failure apart from the problems that look like one, and how the mail-in repair works once your unit reaches us.

The Ford engine ECUs on our shelves

We index our library by the reference stamped on the unit rather than by the model badge, because a single Ford controller is fitted across several models and model years. The Ford engine ECUs we repair track that generational arc, starting with the Visteon petrol units Ford is best known for and running through to the Bosch-managed diesels:

• Visteon EEC-V (LP2 / LBO / LPE series) — the mainstream petrol engine-management family fitted across the Focus, Mondeo and Fiesta era; covered on our Ford Visteon EEC-V petrol engine ECU page, with LP2-332, LP2-339, LBO-141 and LPE-627 references also held.

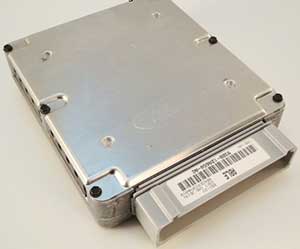

• Visteon EEC-IV (SME series) — the earlier petrol engine-management generation that preceded the EEC-V, detailed on our Ford Visteon EEC-IV petrol engine ECU page, covering the SME-401 and SME-405 units.
• Bosch EDC16C34 — the Bosch common-rail controller used on the TDCi diesels; see our Ford Bosch EDC16 TDCi diesel engine ECU page.
• Bosch EDC16C3 — a further Bosch EDC16 common-rail diesel reference from the same TDCi platform, on our Ford Bosch EDC16C3 common-rail diesel ECU page.
• Bosch ME7.1 — the Bosch Motronic petrol engine-management unit used on the later petrol range, covered on our Ford Bosch ME7.1 petrol engine ECU page.

The library holds further Visteon and Bosch Ford references beyond these, and the theme lists the full set below. If the number printed on your unit is not shown, it is worth checking with us rather than assuming there is no match — we confirm coverage for a specific reference instead of guessing, and each part-number page carries the fault and fitment detail for that particular controller.

Where Visteon and Bosch Ford units give trouble

Each generation has its own tendencies, but nearly all of it can be put right on the circuit board rather than by replacing the whole unit. The complaints we see most on Ford engine ECUs are:

• Limp mode — the engine drops into a restricted, low-power state and will not rev out, usually because the ECU has lost proper control of an injector or a boost-related circuit, which is common on the EDC diesels.
• Misfire and rough running — uneven running with no single-cylinder pattern, which often traces to a failed injector driver stage inside the unit rather than to a plug, coil or injector.
• No communication and no-start — the ECU stops answering a diagnostic scan and the engine will not fire, commonly down to a failed communication line or corrupted internal memory.
• Non-start after a jump-start or voltage spike — a surge, or a boost lead placed on the wrong terminal, can take out the ECU’s power supply or an output stage; it is one of the more frequent reasons a unit arrives.
• Ageing solder joints and capacitors on the older Visteon boards — the EEC-IV and EEC-V units are old enough that dry joints and tired electrolytic capacitors cause intermittent and heat-related faults, which rework on the board resolves.
• Water ingress, corrosion, corrupted EEPROM, failed injector drivers and a failed voltage regulator — specific internal defects that a like-for-like swap would throw away needlessly when the real fault can be corrected.

Where a unit turns out to be beyond economical repair, we also hold exchange units for a number of Ford references, so a failed module need not leave the car or van off the road.

What gets mistaken for a Ford ECU fault

Engine-ECU symptoms overlap heavily with sensor, wiring, fuel and battery faults, so it is worth knowing the signs that genuinely lead back to the control unit. The clearest are an engine that cranks but never catches, a repeated and sudden drop into limp mode, misfiring with no single-cylinder pattern, warning lights that will not clear, or a unit that has gone silent on a scan tool. A fault that appeared straight after a jump-start, a flat battery or work near the ECU connector points firmly at the module itself.

Because each of those symptoms can come from more than one source, we never treat the ECU as the cause before it has been tested. Every unit that reaches us is logged, visually inspected and electrically tested before any verdict is reached, so nothing is condemned — or repaired — on assumption. A damaged Ford ECU can very often be repaired at component level; what it does not need is a battery-disconnect “reset”, which clears nothing when the fault sits in the hardware.

Why the original Ford unit is the better repair

A Ford engine ECU is tied to its own vehicle through the immobiliser and security relationship, which is why fitting a different unit is seldom a clean swap. A replacement, new or used, has to be matched to the vehicle, and a second-hand unit brings its own stored pairing that must be cleared and re-linked — specialist coding and diagnostic time on top of the part, with no guarantee it settles first time.

Repairing the original module avoids all of that. We correct the specific fault on your own board and return that same unit, so it comes back with its original coding and immobiliser pairing intact — a plug-and-play refit with no reprogramming and no re-coding when it goes back on the vehicle. Every repair is carried out in-house by our own engineers, under a microscope with temperature-controlled rework equipment, using OEM-grade parts that meet or exceed the original specification, and nothing is signed off until it has passed final testing.

Booking your Ford ECU in

This is a UK-wide mail-in service, run without a walk-in counter by design. Once your unit arrives it is logged, tested and diagnosed, and we then come back to you with the outcome and an estimate before any chargeable work begins — nothing proceeds without your authorisation. The completed repair carries a 24-month warranty on the specific fault put right. To make a start, find your Visteon EEC, Bosch EDC or Bosch ME reference in the Ford part-number pages below, or complete the Repair Form on our contact page for a diagnosis and quote for repair so our engineers can confirm coverage. The full range of makes and modules we handle is set out on our What We Repair page.
